2-1/2″ Pressure Gauge, Stainless Steel Case, Chrome Plated Brass Connection, Dry
Product Features & Applications:
• ASME B40.1 Grade Accuracy Compliance
• Stainless Steel Case
• Brass and Copper Alloy Wetted Parts

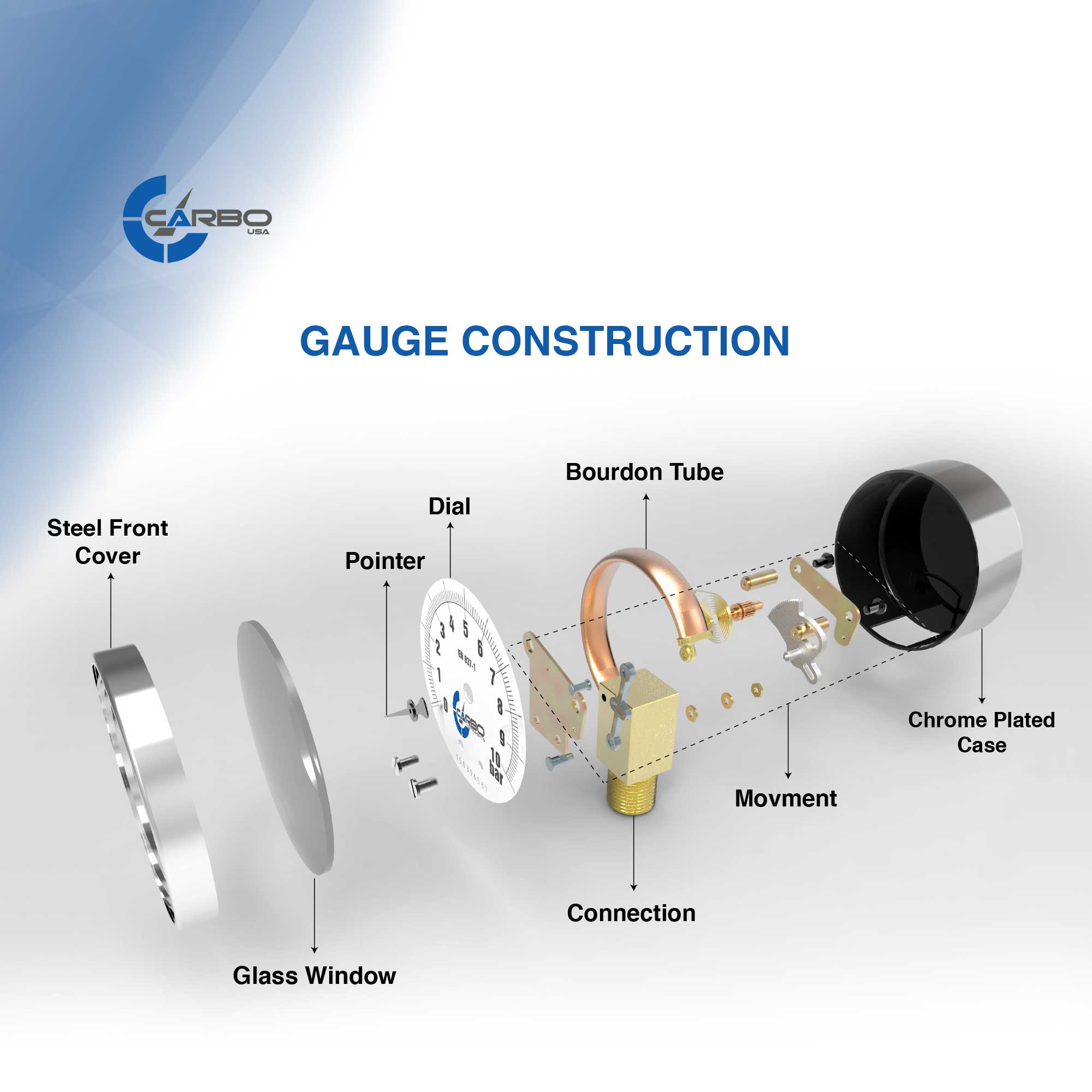

• Bourdon Tube Type

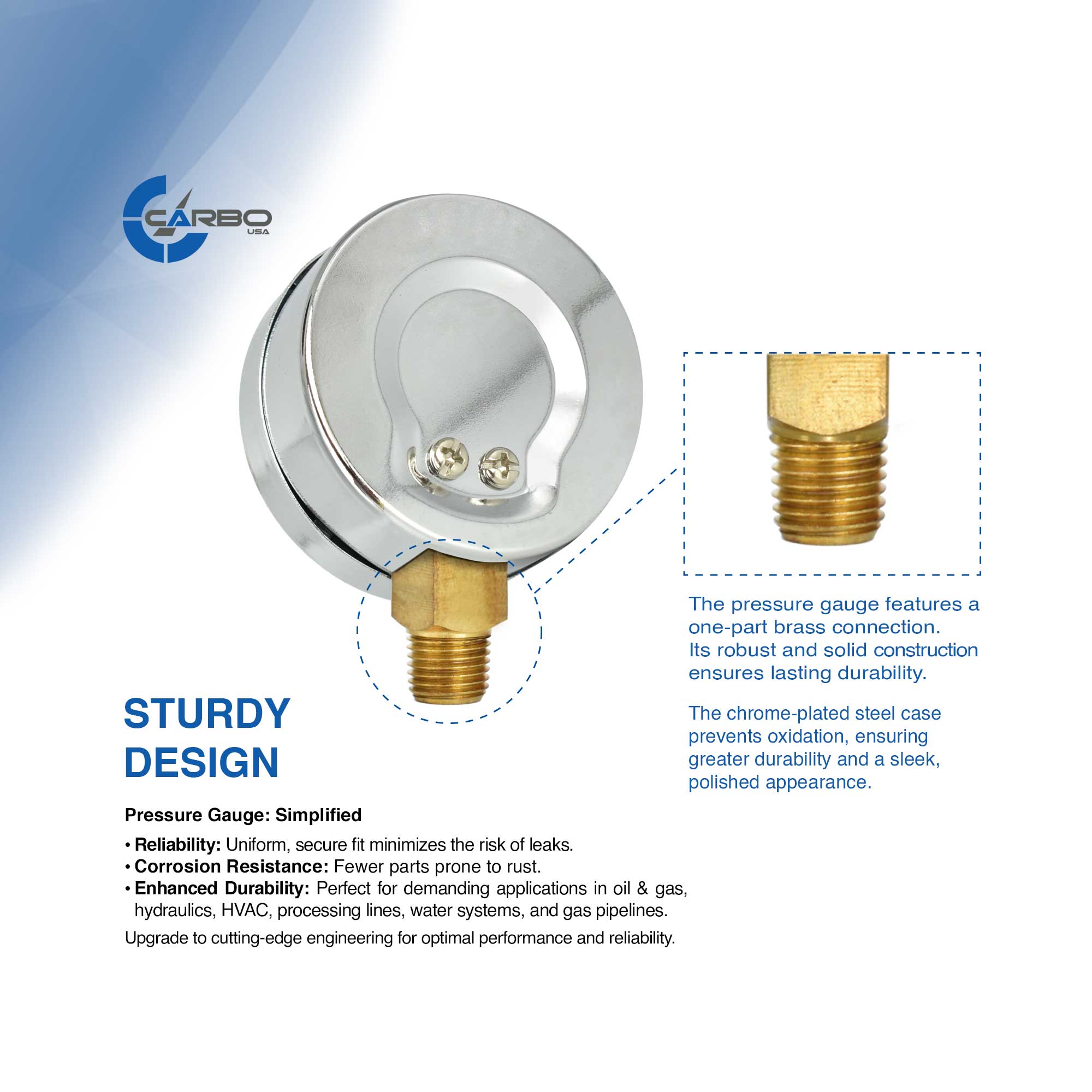

• Chrome-Plated Brass Connection
• Available for Pressure, Vacuum, Compound, Special Configurations
• Reliable: dampen Pulsation & Vibration
• ASME B40.1 Grade Accuracy Compliance
• Stainless Steel Case
• Brass and Copper Alloy Wetted Parts
• Bourdon Tube Type
• Chrome-Plated Brass Connection
• Available for Pressure, Vacuum, Compound, Special Configurations
• Reliable: dampen Pulsation & Vibration
Applications: Oil, Water, Air, Compressor Hydraulics, HVAC,
Gaseous & Liquid media that are not highly viscous or crystallizing and not corrosive or oxidizing to copper alloy part
Product Data Sheets:
| Weight | 0.3125 lbs |
|---|---|
| Connection Location | |
| Pressure Range | -30Hg – 0 – +160 psi, -30Hg – 0 – +100 psi, -30Hg – 0 – +60 psi, -30Hg – 0 – +30 psi, -30Hg – 0 – +15 psi, -30Hg-Vacuum, 0-15psi, 0-30psi, 0-100psi, 0-160psi, 0-1000psi, 0-1500psi, 0-2000psi, 0-200psi, 0-3000psi, 0-300psi, 0-4000psi, 0-400psi, 0-5000psi, 0-6000psi, 0-600psi, 0-60psi |
| Size | |
| Connection Size | |
| Accuracy |
